BERT Pattern Generator

   The Pattern Generator creates clock and NRZ data patterns used as stimulus for developing and evaluating digital communications systems and components. The Pattern Generators offers flexibility to create data streams of varying PRBS or user-defined patterns, at data rates from 1.0 – 32.0 Gbits/sec, with selectable signal offset, amplitude, timing and preemphasis to help you create the test signals you need.

BERT Pattern Generator

Key Features

  • 1.0 – 32.0 Gbps
  • 2 synchronous NRZ data channel outputs
  • 1 clock output
  • Use differentially or single-ended
  • Internal synthesizer or external clocking
  • 4 tap pre-emphasis
  • PRBS or user-specified patterns
  • Bit-Interleaved or unlinked channels
  • AC or DC coupled data outputs
  • Programmable signal levels
  • Optional stress accessory (PPGSA)
  • Compact Design

   The Pattern Generator creates data patterns used as stimulus for developing and evaluating digital communications systems and components. The Pattern Generators offers flexibility to create data streams of varying PRBS or user-defined patterns, with selectable data rate,, timing and pre-emphasis to help you create the test signals you need.

   The Pattern Generator is a compact instrument that uses a built-in synthesizer or accepts an external clock input that is used to generate two channels of NRZ data at rates from 1.0 up to 32.0 Gbps each (28 Gbps is standard). Variable output delay is available on each channel for precise phase alignment.  Each channel is DC-coupled and supports 4 Tap pre-emphasis with differential amplitude up to 2 Vpp. Channel pattern sequence output can be synchronized to combine properly to form a higher speed 2:1 multiplex.

External triggers can be used to trigger your oscilloscope on clock- or pattern-based triggers. A built-in error injector with selectable error profiles enables creating single-shot and repeating error signatures.

   The built-in calibration input provides sub-rate error detection that allows you to examine eye-diagrams and BER Bathtub analysis for sub-rate return channels.  This is perfect for use with applications that utilize a sub-rate loopback for receiver testing, such as DDR5.

Pattern Generator

Pattern Generator Specification Value Notes
Internal Synthesizer 0.5 – 14.0 GHz 1/2-rate DDR clock. 16 GHz option available.
Data Rate 1.0 – 28.0 Gbps 2 synchronous channels. 32 Gbps option available.
Amplitude 250 mV – 2.0 V Differential
Offset -2.0 to 3.0 V V-Mid
Variable Delay Range 0 – 150 ps Each independent channel
Variable Delay Resolution 0.1 ps
Rise/Fall Time 15 ps 20/80, typical
Jitter Clock 350 fs RMS, Data 600 fs RMS typical
Preemphasis 4 Tap for each channel Tap-2 is always 1.0
PRBS Patterns PRBSn, n=7,11,13,15,20,23,31 True or inverted
User Patterns 2.0 Megabits each channel Organized as 8,192 128-bit words, with looping
Output Data 2.92 mm, 50 Ohms, AC or DC Selectable 2 channels with independent delays
Output Clock SMA, 50 Ohm, AC coupled,, DIfferential
Output Triggers SMA, clock or data pattern related triggers
Power Supply 100-240 VAC to 12V at 5A CE, FCC, UL Certified
Power 70 watts
Dimensions 6″ (L) x 7-1/2″ (W) x 2-1/2″ (H)

Pattern Generator Instructional Video (19 min)

Video – Looking up IP address (3 min)

Video – Intro to Automation (5 min)

Pattern Generator

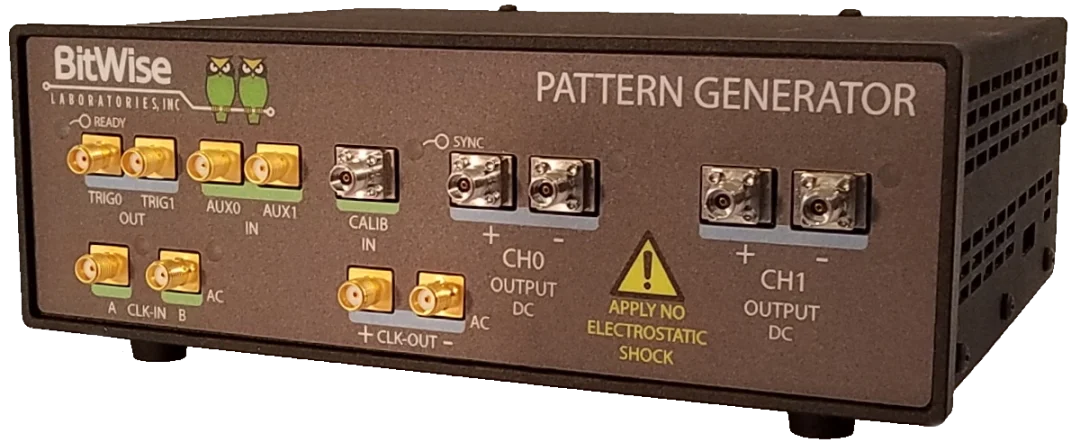

Pattern Generator Front
Pattern Generator Rear
Pattern Generator User Interface

DDR5SA – DDR5 Stress Accessory

Download Datasheet

PPG2CHA

2-Channel Pattern Generator

USD $77,900

2-Channel Pattern Generator creates 2 synchronous linked, interleaved, or unlinked NRZ data streams, 1.0-28.0 Gbps. Built-in Synthesizer 0.5-14.0 GHz DDR clock. Patterns include PRBS or user-specified up to 2.0 Megabits each channel.

Download Datasheet

PPG32UPGRADE

Pattern Generator 32 Gbps Speed Upgrade

USD $7,800

Speed upgrade for PPG2CHA Pattern Generator to provide performance beyond standard 28 Gbps data rates to 32 Gbps data rates.

PPGSA

Pattern Generator Stress Accessory

USD $7,200

Multi-function stress accessory. Modulates the internal synthesizer with 10-1000 MHz Random Jitter (RJ) and 0.030-200 MHz Sine Jitter (SJ). Also provides output for 500-2500 MHz Sine interference (SI) that may be combined externally using a separate RF power splitter and isolating attenuator (not included). PPG2CHA provides automatic detection, user interface, and automation control.

Download Datasheet

DDR5SA

DDR5 Stress Accessory

USD $15,700

Multi-function accessory to provide stress, I2C/SM-Bus, and REFCLK features for DDR5 testing. Provides 10 – 1000 MHz Random (RJ) and 1 – 200 MHz Sine (SJ) jitter, and 500 – 2500 MHz Sine interference. Provides I2C cable to ASTEK CTC2 test fixture.

Download Datasheet

EXTWARRANTY

Additional 2-year Extended Warranty

10%

Two-year extension to the standard one-year warranty. Does not apply to software options, 3rd-party sell through products, cables, connector kits, termination kits. Includes scheduled calibrations.

Pattern Generator Online Help

lookup.bitwiselabs.com/HelpPega/Welcome.html

Pattern Generator Quick Start

lookup.bitwiselabs.com/HelpPega/PPG_QuickStart.html
